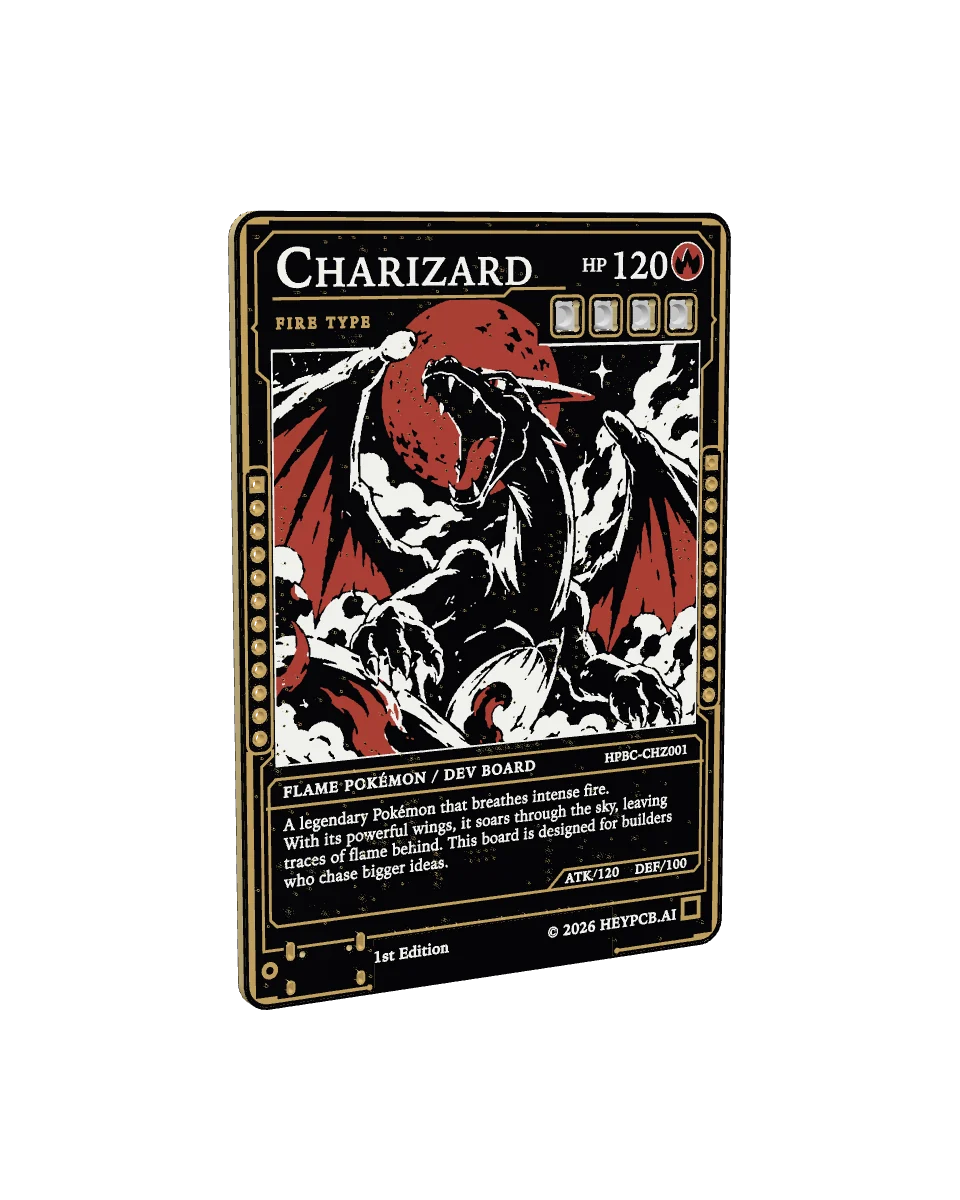

The board in 3D, from its own design files

1st Edition · HPBC-CHZ001

Charizard

An ESP32-S3 dev board the size of a Pokémon card, in gold, white and red.

Open source

Free

Every file it was made from, free to build your own. Open the design in the editor and download them there.

Open-source design

The hardware under CC BY-SA 4.0, the firmware under MIT. It is an unofficial fan board: Charizard's name and likeness are Nintendo's, Creatures' and GAME FREAK's, and neither licence covers them.

Donate with Stripe

Optional. It helps us make the next board.

Both sides.

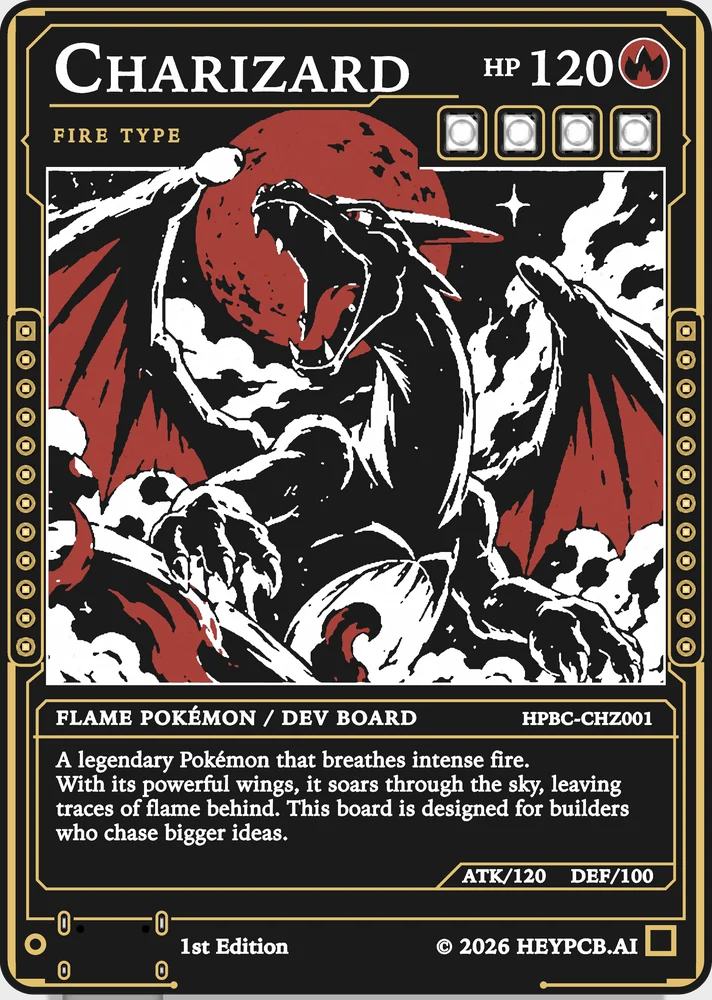

The face: Charizard roaring in front of a red moon, in gold, white and red on black, framed as a trading card, with HP 120, four energy windows and a fire icon along its top.
Fig. 02 · FaceCharizard in gold, white and red. The four energy windows under HP 120 are four LEDs, shining through.

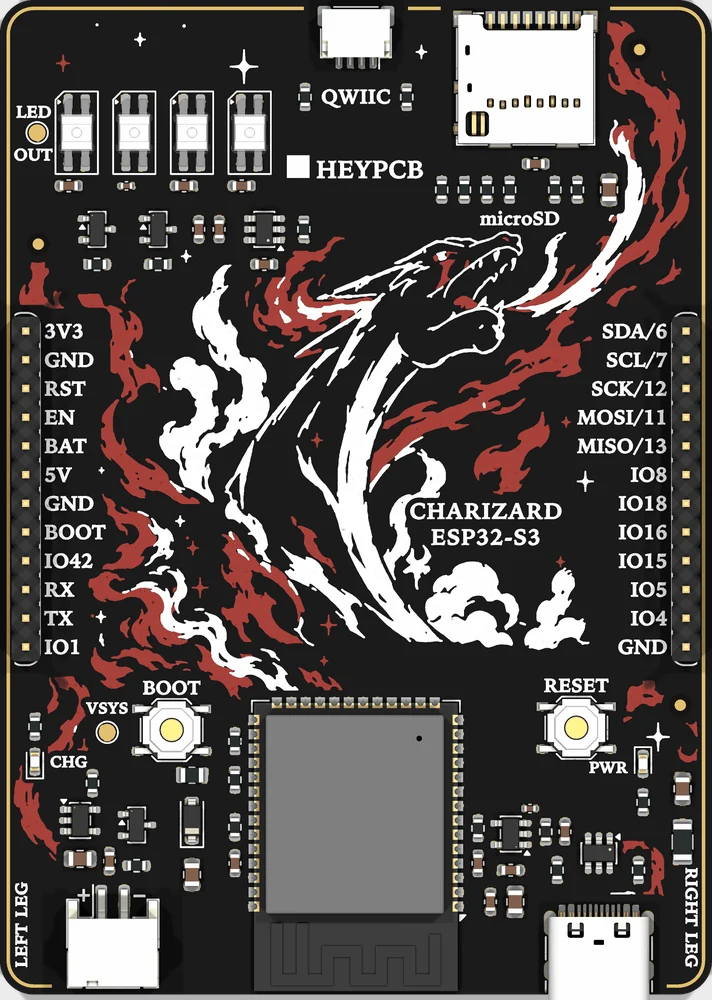

The back: the parts round Charizard's head, drawn in white and red rising out of smoke and flame, both pin rows named, and the battery and USB-C labelled as its legs.
Fig. 03 · BackEvery part round the dragon's head, every pin named, its legs the battery and USB-C.

Charizard's Base Set card has the 120 HP this board prints, and a Fire Spin that hits for 100 by discarding two of its own Energy cards.

Fig. 04 · On the card

Part by part.

Charizard's back, its parts numbered.
  1. 01ESP32-S3Two cores, Wi-Fi, Bluetooth 5
  2. 02USB-CPower and code
  3. 03Battery1S LiPo, JST-PH
  4. 04ChargerCharges the battery
  5. 053.3 V regulator1 A, 8 µA idle
  6. 064 RGB LEDsShine through the face
  7. 07LED OUTChain more LEDs
  8. 08QwiicSensors, no soldering
  9. 09microSDFiles and logs
  10. 10BOOTFlash mode, then a button
  11. 11RESETRestarts the chip
  12. 1212 pinsPower, UART, GPIO
  13. 1312 pinsI²C, SPI, GPIO
Fig. 05 · The back, every part namedEach part where its design places it

What's on it.

Read off the board's own design files.

Module
ESP32-S3-WROOM-1-N8R8, two cores at 240 MHz, 8 MB flash, 8 MB PSRAM
Radios
Wi-Fi 4 (2.4 GHz), Bluetooth 5 LE
Power
USB-C, 5 V, fused
Battery
1S LiPo on JST-PH, charged at 213 mA
Storage
microSD
I²C
STEMMA QT / Qwiic
Lights
Four SK6812 addressable LEDs, behind the face's energy windows
Buttons
RESET and BOOT
Pins
24 holes at 2.54 mm, headers not included
Board
63 × 88 mm, a Pokémon card's size, four layers, ENIG gold and red UV ink
