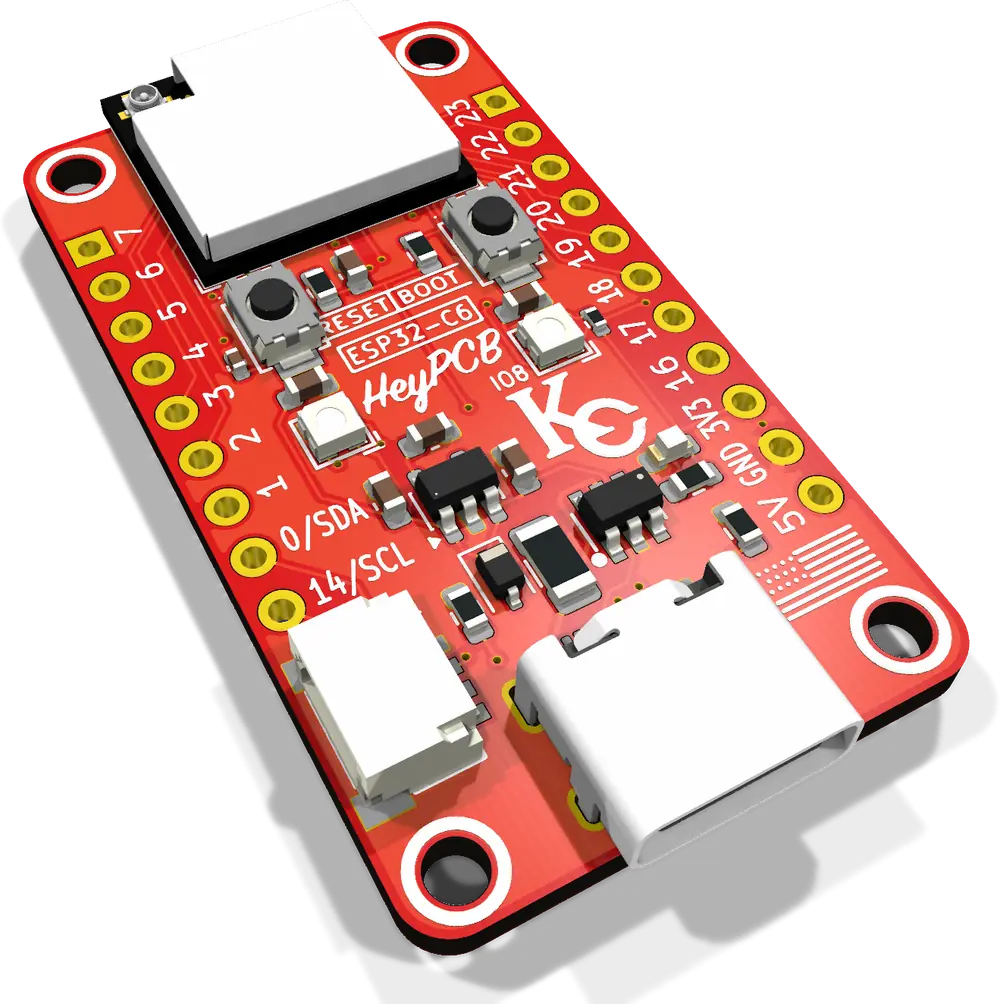

The Red Eyes Toon Dragon at an angle: a red board with an ESP32-C6 module, two buttons, a STEMMA QT port and USB-C.
Fig. 01 · The board in 3DFrom its own design files

Limited edition of 50

Red Eyes Toon Dragon

An ESP32-C6 dev board with a dragon on its back.

$0.00

Ships as soon as the first batch is made.

Get one of the 50, free

Post the board on X and LinkedIn with the words “make hardware more open and accessible” and tag heypcb. We send one to you free.

Post on XPost on LinkedIn

We reply to your post to ask where to send it.

Open-source designDonate with Stripe

A donation is optional and helps us make the next board.

Both sides.

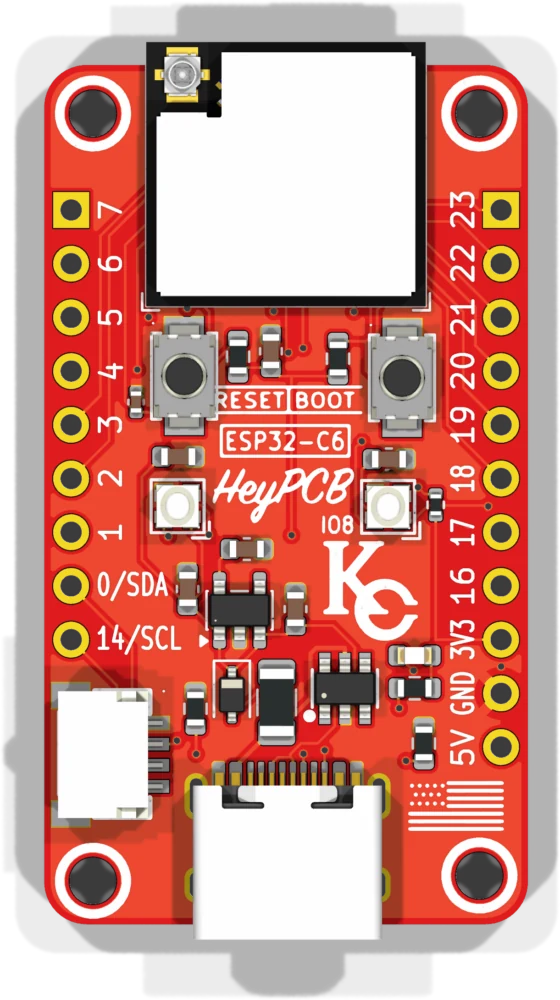

The front: the ESP32-C6 module and its antenna connector, RESET and BOOT, two LEDs, the STEMMA QT port, USB-C and twenty labelled pin holes.
Fig. 02 · FrontThe ESP32-C6 module, USB-C, RESET and BOOT, and every pin named.

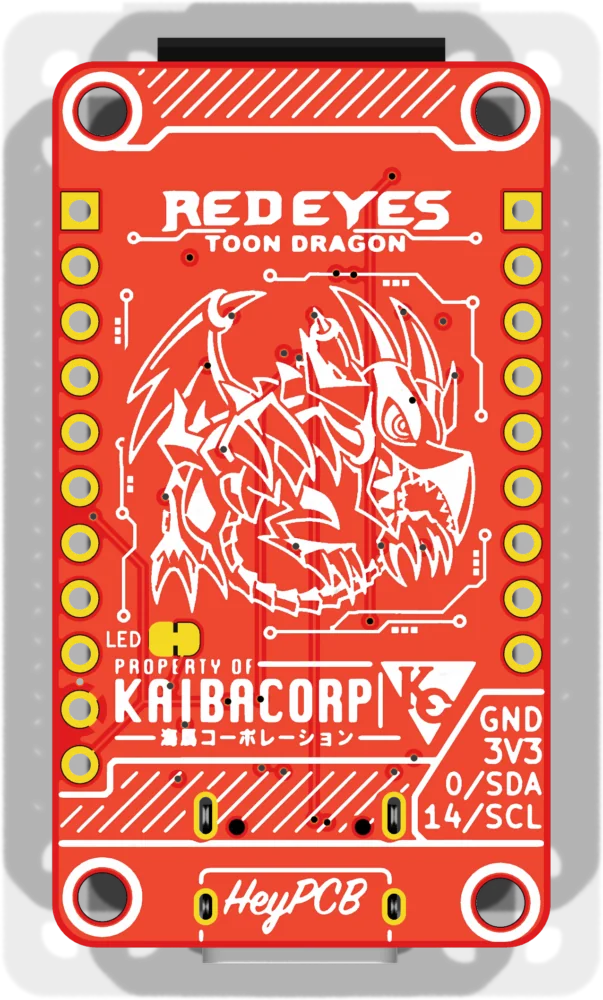

The back: a dragon drawn in white silkscreen under the words Red Eyes Toon Dragon, the power light's cut jumper beside the word LED, and the STEMMA QT pins named.
Fig. 03 · BackThe dragon, in white silkscreen, and the jumper that turns the power light off.

Red-Eyes Toon Dragon is generally considered stronger and more useful in an actual Yu-Gi-Oh! Toon deck than Blue-Eyes Toon Dragon, even though Blue-Eyes has higher raw stats.

Fig. 04 · On the name

Part by part.

Red Eyes Toon Dragon's front, its parts numbered.
  1. 01ESP32-C6Wi-Fi 6, Bluetooth 5, Thread, Zigbee
  2. 02USB-CPower and code
  3. 03STEMMA QTSensors, no soldering
  4. 042 RGB LEDsAddressable, on GPIO8
  5. 05BOOTFlash mode, then a button
  6. 06RESETRestarts the chip
  7. 073.3 V regulator600 mA, from USB
  8. 08ESD guardProtects the USB lines
  9. 09Power LEDIts jumper on the back turns it off
  10. 109 pinsI²C and GPIO 1–7
  11. 1111 pinsUART, GPIO and power
  12. 12M2 holesOne in each corner
Fig. 05 · The front, every part namedEach part where its design places it

What's on it.

Read off the board's own design files.

Module
ESP32-C6-MINI-1U-H4, 4 MB flash
Radios
Wi-Fi 6, Bluetooth 5 LE, Thread, Zigbee
Antenna
2.4 GHz Wi-Fi, 3 dBi, 5 cm, included (W.FL / MHF III)
Power
USB-C, 5 V, fused
I²C
STEMMA QT / Qwiic
Lights
Two SK6812 addressable LEDs, and a power LED with a cut jumper
Buttons
RESET and BOOT
Pins
20 holes at 2.54 mm, headers not included
Board
22.86 × 40.64 mm, four layers, ENIG
