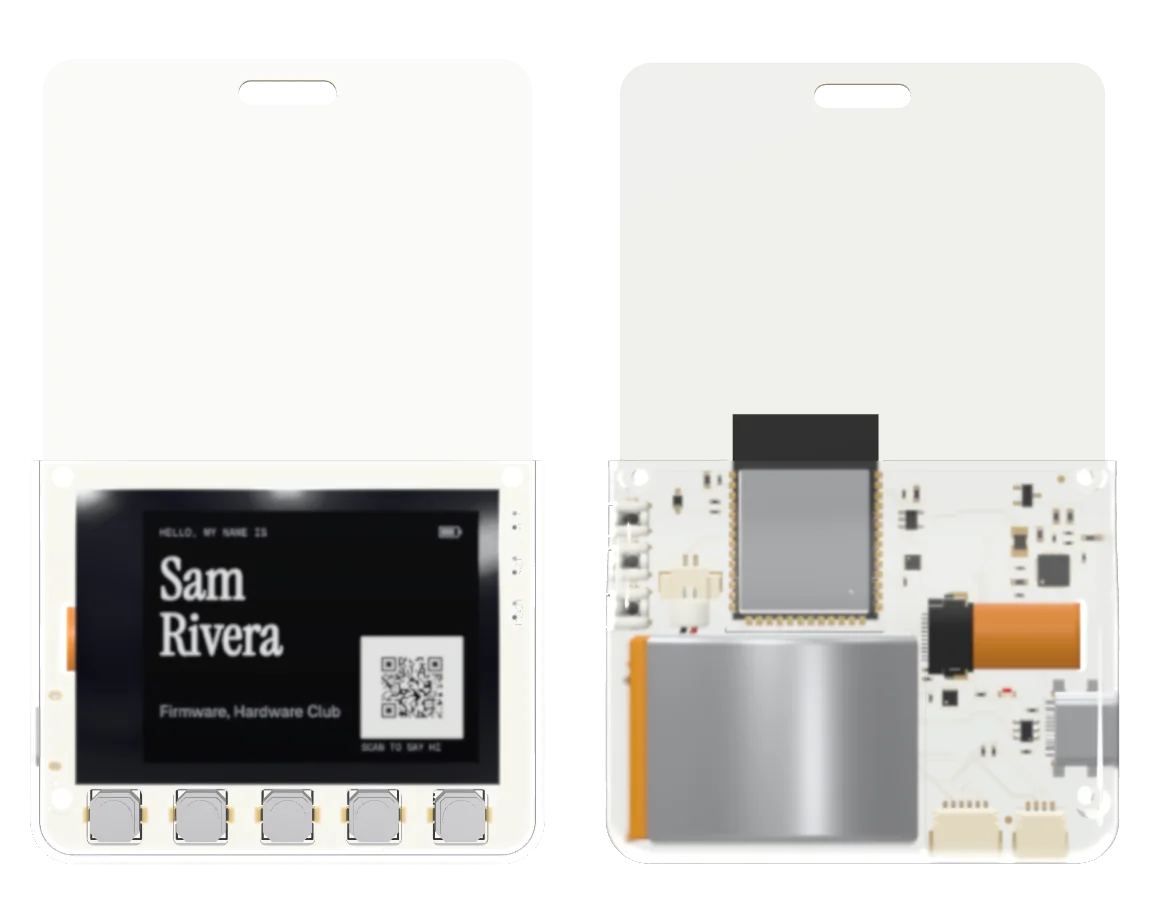

heypcb Badge from the front and from the back: a white board in a clear case, its screen and five buttons on the front, its module, battery and ports behind.
The badge in 3D, from its own design files, with your picture on it

No. 05 · Made to order

Badge

A conference badge with a 2.0-inch screen, printed with your picture.

Your picture

60 × 49.2 mm a side

The front panel

Printed in colour across the board above the case, on each side. Drop a picture here or on the badge.

Choose how many

Nothing is sold on this page. Ask for a quote and we reply by email with a price.

Five buttons and a screen.

The ESP32-S3 on the back drives the screen, reads its buttons and runs the code you load on it over USB-C. Here are three things it can show, drawn at the screen's own 320 × 240.

The badge's front square on: the screen in its clear case, the five buttons under it, PWR, RST and BOOT on the right edge.
Fig. 02 · Name, at the screen's 320 × 240Select the screen to use the keys

Your name, a line under it and a QR code to your page. Type them below.

A version 3 code, 29 × 29 modules

Part by part.

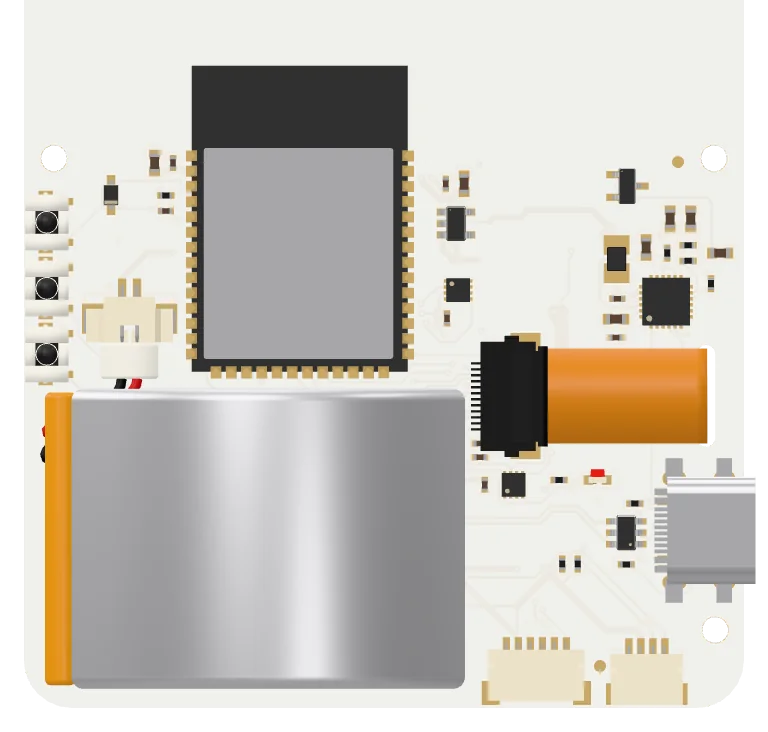

Badge's back, its parts numbered.
  1. 01ESP32-S3Wi-Fi, Bluetooth and your code
  2. 02TLV75733The board's 3V3 supply
  3. 03BQ25895Charges the cell from USB-C
  4. 04SCREENThe screen's 12-pin flex
  5. 05MAX17048GReads the battery's charge
  6. 06USB-CCharging and code
  7. 07QWIICSensors on I²C
  8. 08PWR RST BOOTThe three side buttons
  9. 09BATTERYThe cell's plug
  10. 10600 MAH CELLLithium polymer, 35 × 25 mm
  11. 11DEBUGSerial port and boot pins
Fig. 03 · The back, every part namedEach part where its design places it

Close up.

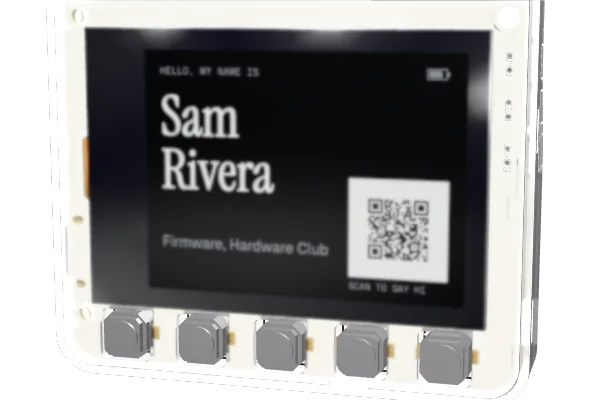

  • The badge's screen and the five buttons under it, through the clear case.
    Fig. 04 · The screen and its five buttons

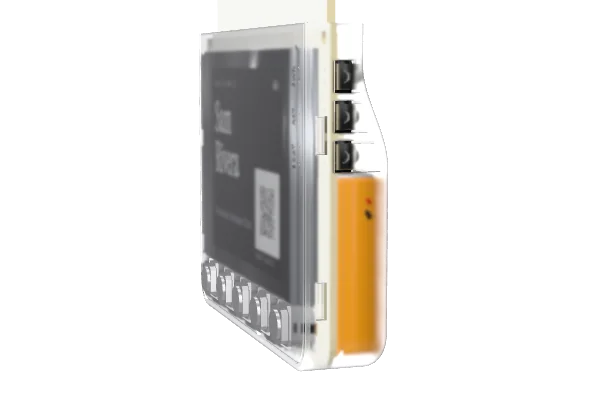

  • The badge's right edge: its three side buttons, and the clear case deepest where the battery sits behind the board.
    Fig. 05 · PWR, RST and BOOT on the side

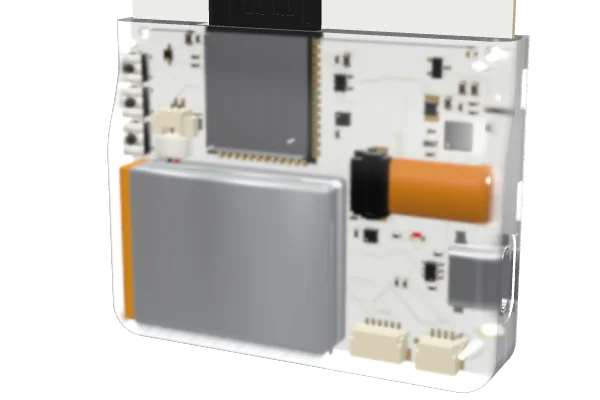

  • The badge's back at an angle: the module, the battery and its plug inside the clear case.
    Fig. 06 · The back, through the case

What's on it.

Every line is read off the badge's own design files: its board, its parts and its case.

Screen
2.0-inch IPS, 320 × 240
Chip
ESP32-S3 (ESP32-S3-WROOM-1-N16R8): Wi-Fi and Bluetooth LE, 16 MB flash, 8 MB PSRAM
Buttons
Five under the screen; PWR, RST and BOOT on the side
Battery
600 mAh lithium-polymer cell, charged over USB-C by a BQ25895, its level read by a MAX17048G
Ports
USB-C for charging and code; a 4-pin Qwiic port for I²C sensors; a 6-pin debug port
Board
60 × 97 mm, 4 layers, 1.2 mm; white solder mask, gold (ENIG) pads
Printed
Your picture in colour on both sides, 60 × 49.2 mm a side, above the case
Case
Clear, snapped shut without screws; 12.95 mm thick at the battery, 9.11 mm above it
