BlogDRV8833PWPR PCB footprint

Stop searching for PCB footprints.

Inky turns a part number or datasheet into a schematic symbol and PCB footprint, then builds the dual-motor driver board.

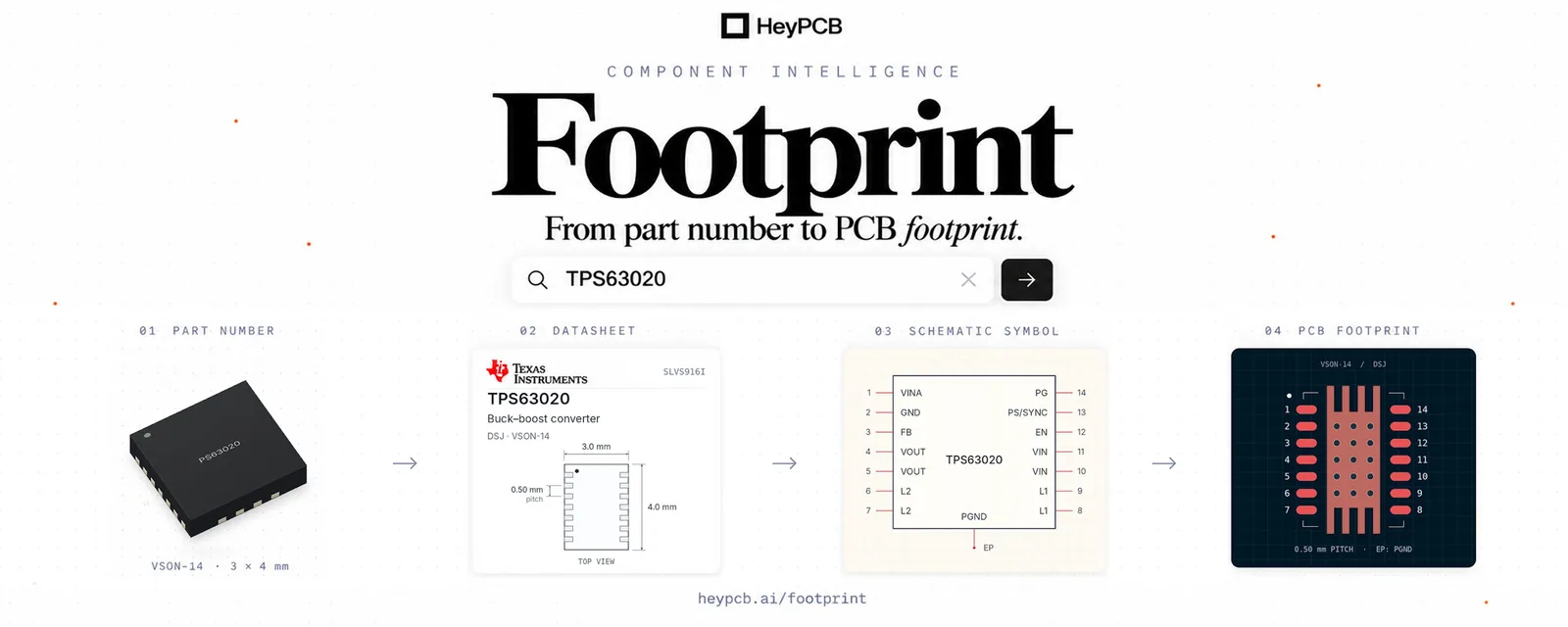

HeyPCB shows a flow from part number TPS63020 through a datasheet and schematic symbol to a PCB footprint.

A missing footprint can stop a PCB design before it starts. You have the datasheet, but still need to turn pin tables and mechanical drawings into a component you can actually use.

Now Inky can do that work for you.

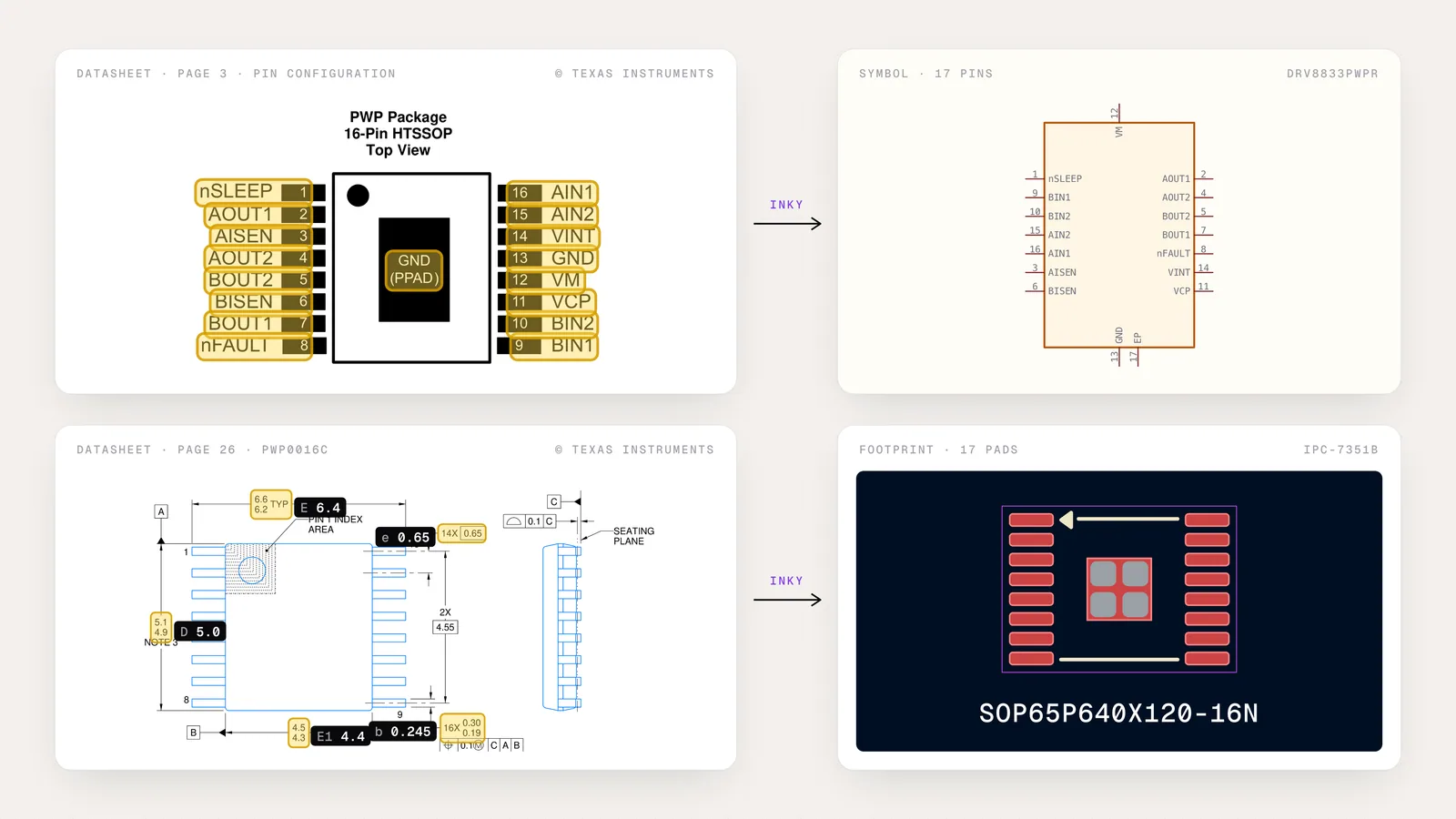

Inky arrows link a 16-pin HTSSOP pin configuration and package drawing to a DRV8833PWPR symbol and footprint.

Type a part number, paste a datasheet link, or upload a PDF. Inky reads the documentation and generates the schematic symbol and PCB footprint directly in HeyPCB.

For this demo, we used the DRV8833PWPR motor driver. Inky generated a 17-connection schematic symbol and matching 16-pin HTSSOP footprint, including the exposed thermal pad.

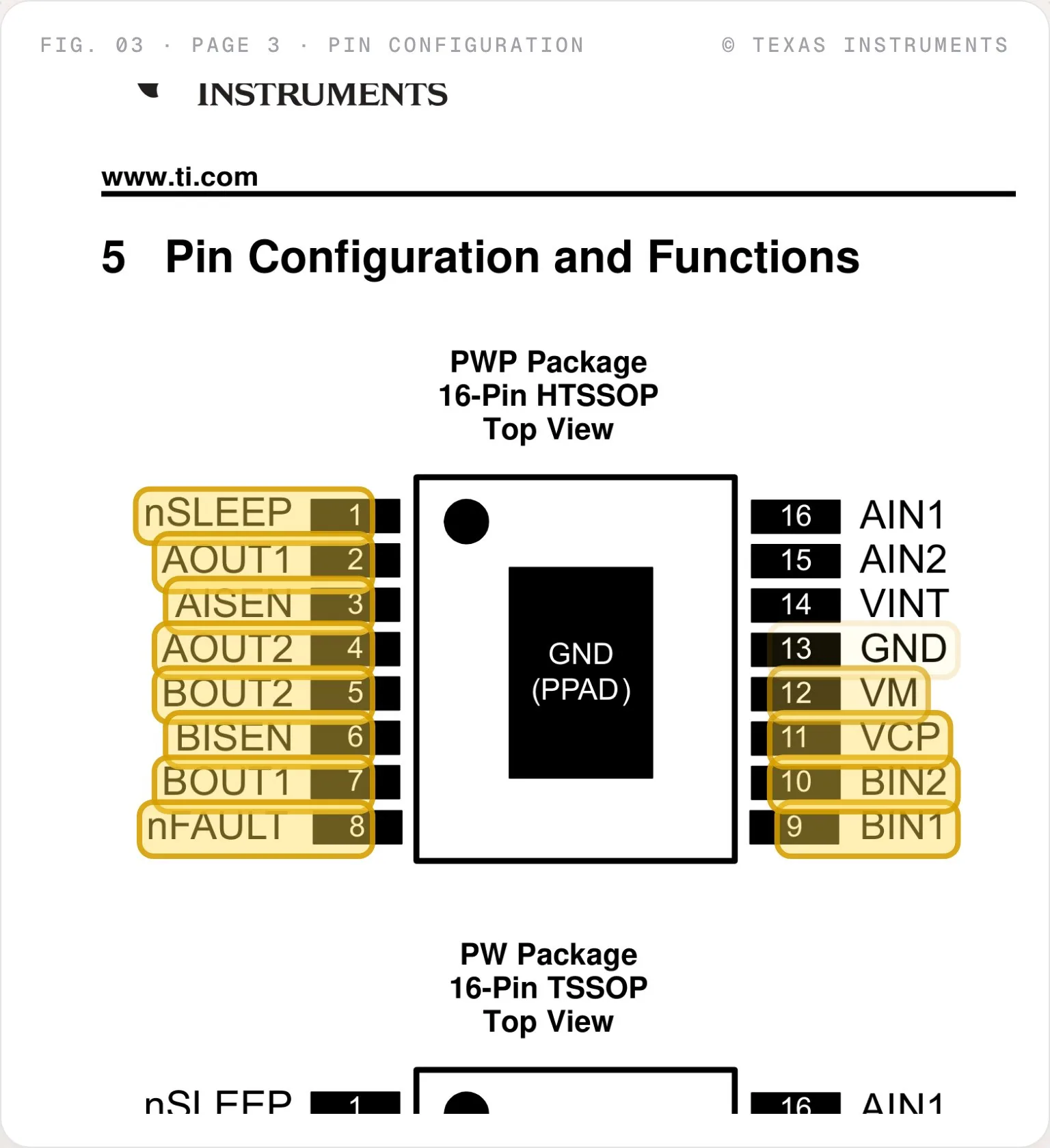

Texas Instruments page 3 pin configuration for a 16-pin HTSSOP, with pin names highlighted and GND (PPAD) in the center.

The generated part is saved to your library, ready to use across projects. Reference it with @ in an Inky prompt, and you can design an entire circuit around it.

We asked Inky to build a dual-motor driver board using the new component. It generated the schematic, placed the components, and routed the PCB using the footprint it had just created.

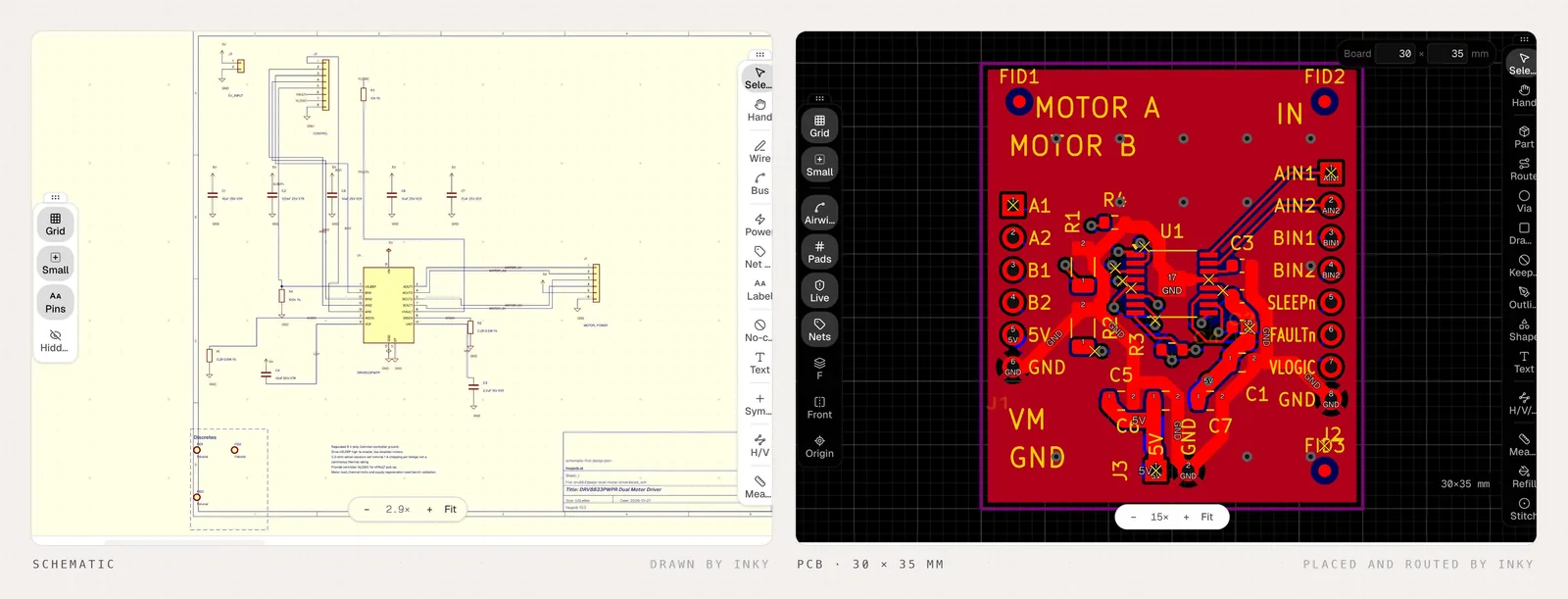

Schematic drawn by Inky next to a 30 by 35 mm board, placed and routed by Inky, labeled Motor A and Motor B.

A missing footprint shouldn't limit what you can build.

Start with a part number. Build the rest with Inky.

heypcb.ai/footprint Start building at heypcb.ai/dashboard
